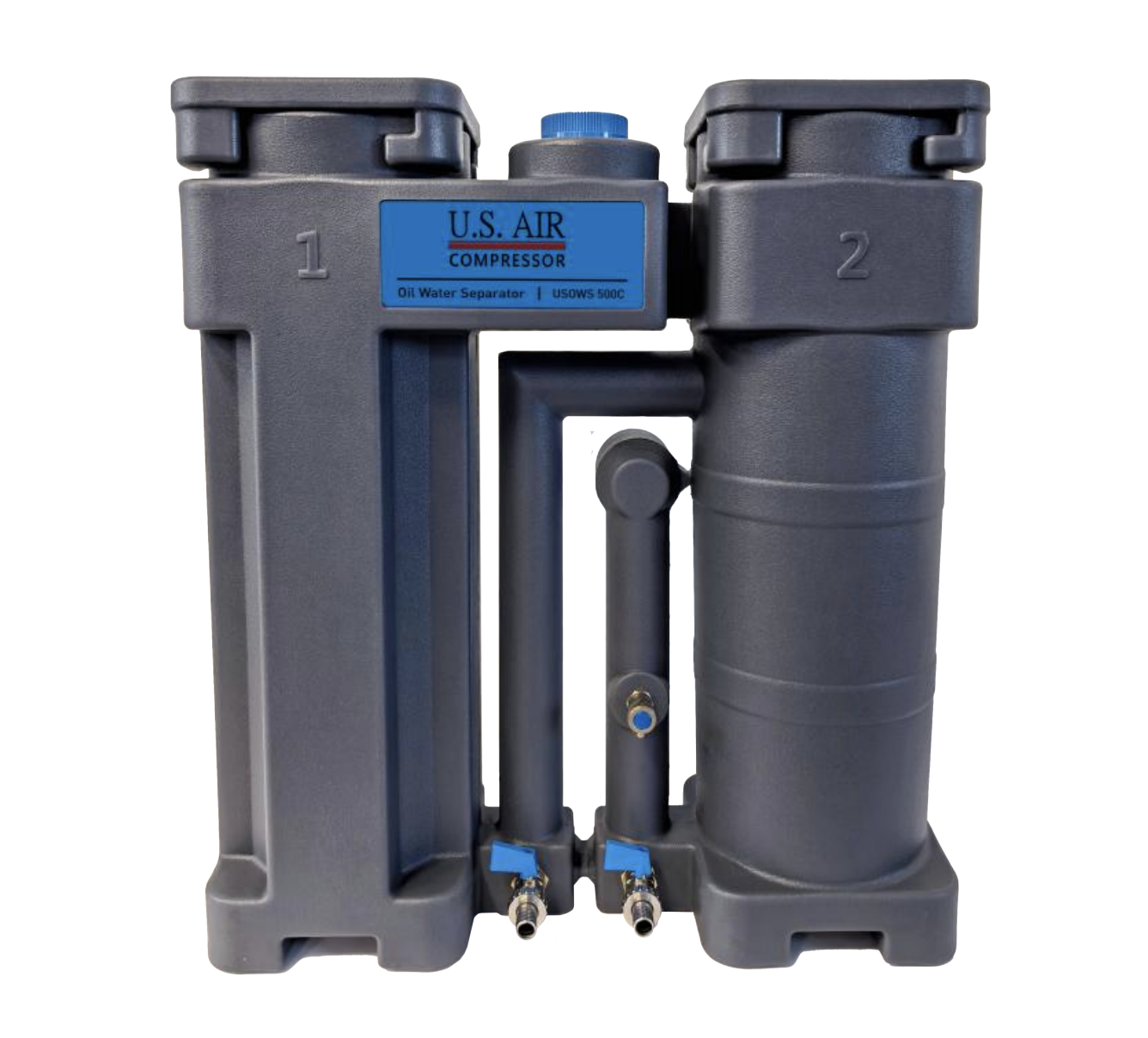

US AIR Oil -Water Separator Series
Compressed-air condensate treatment for compliant, clean discharge.
Why Use an Oil Water Separator?
Condensate from oil-injected compressors is a mix of water, lubricant, and particulates. Discharging it untreated is both
environmentally harmful and typically illegal. An oil-water separator separates the lubricants from the water so the water can
be discharged in accordance with local regulations while the captured oil is disposed of properly.
Features Of Oil-Water Separator Series
Stay Durable
Robust construction—resistant to vibration and shock.
100% oil-free
Removes virtually all common compressor lubricants (mineral & synthetics).
Service Easy
Lightweight housings; simple, tool-free servicing.
Check Status
Visual element-life indicator and overflow indicator on larger models.
Change Fast
Quick-change, disposable filter elements with watertight disposal kit.
Fit Any Drain
Compatible with all common drain types (timer, zero-loss, float).

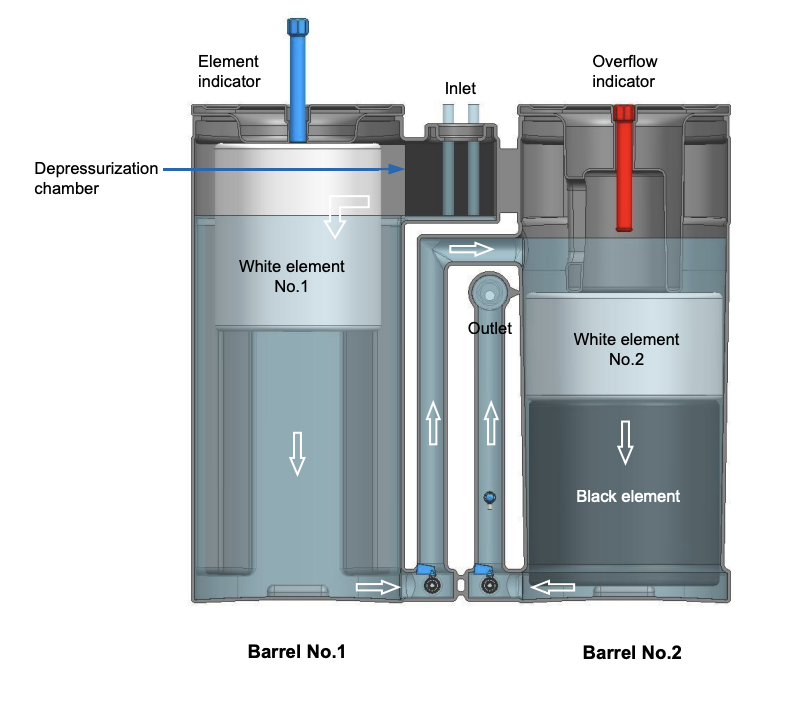

Working Principle
- Depressurization & prefiltering
- Primary adsorption (element No.1)
- Secondary adsorption (element No.2)
- Polishing with activated carbon
- Status at a glance: indicator shows when replacement is needed.
Note: For stubborn synthetic emulsions, consider larger units or organoclay-type cartridges.
Technical Data Table
| Model | Maximum Compressor Capacity* m³/min |
Maximum Oil Adsorption Capacity Litres |
Inlet port | Outlet port | Target output PPM |
Package Dimensions (L × B × H) mm |
Weight kg |
|---|---|---|---|---|---|---|---|
| USOWS-15 | 2 | 1.96 | 1 x G1/2" | G1 | <10 | 375 × 155 × 265 | 3.5 |
| USOWS-40 | 5 | 4.9 | 2 x G1/2" | G1 | <10 | 555 × 195 × 610 | 11 |
| USOWS-75 | 10 | 9.8 | 2 x G1/2" | G1 | <10 | 655 × 245 × 750 | 20 |
| USOWS-150 | 20 | 14.6 | 2 x G1/2" | G1 | <10 | 785 × 310 × 900 | 30 |
| USOWS-250 | 30 | 24.6 | 2 x G1/2" | G1 | <10 | 975 × 385 × 900 | 47 |
| USOWS-500 | 60 | 49.2 | 2 x G1/2" | G1 | <10 | 1155 × 475 × 1045 | 85 |
*Based on an 8-hour shift.
Installation & Service

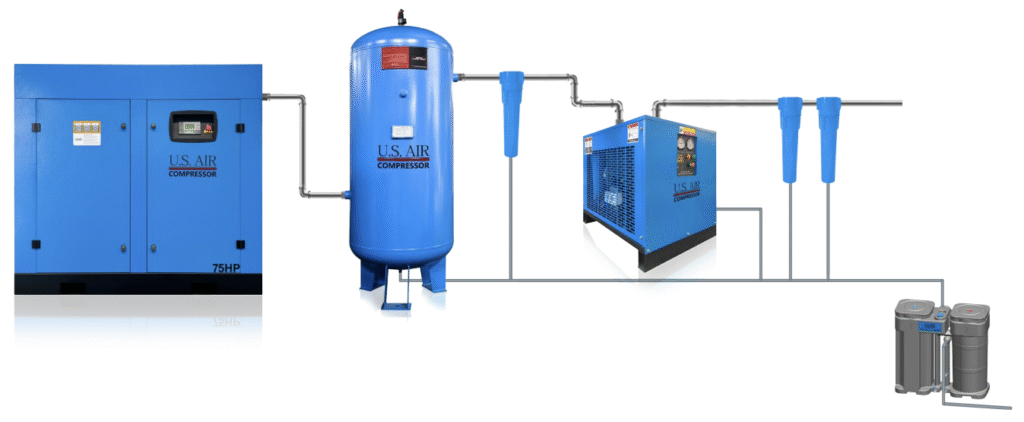

- Manifold all condensate drains to the separator inlet.
- Keep lines sloped; avoid long horizontals.
- Use test valve and sample bottle for verification.
- Replace elements when indicator bottoms out.
- Dispose of saturated elements per hazardous-waste rules.
